1974 Datsun 260z


Day 81 - July 23, 2015

Cleaned painted and install water manifold and alternator bracket. Replace universal joint in driveshaft. Installed exhaust heat wrap.

RD 15-07-23 (1).jpg
RD 15-07-23 (2).jpg
RD 15-07-23 (3).jpg
RD 15-07-23 (4).jpg
RD 15-07-23 (5).jpg
RD 15-07-23 (6).jpg

Day 82 - July 24, 2015

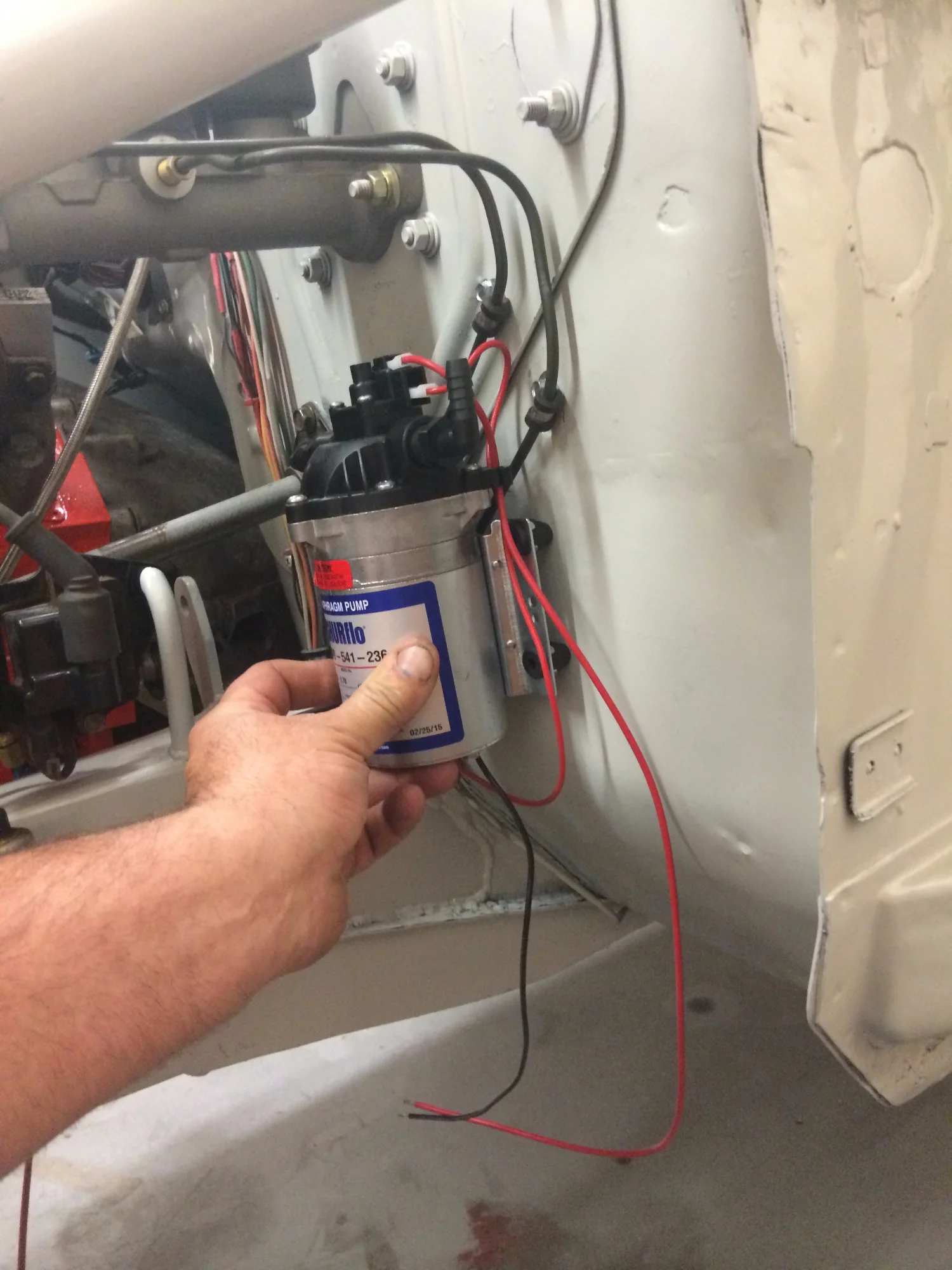

Began brainstorming ideas for methanol pump location. Got shifter working. Filled engine with oil.

RD 15-07-24 (1).jpg
RD 15-07-24 (2).jpg

Day 83 - July 25, 2015

Dan Smith helped start the car.

RD 15-07-25 (1).jpg
RD 15-07-25 (2).jpg
RD 15-07-25 (3).jpg
RD 15-07-25 (4).jpg
RD 15-07-25 (5).jpg

Day 84 - July 26, 2015

Wired up trans brake. Made new IAT sensor mount. Tested building boost at the line. Determined we needed better waste gate control.

RD 15-07-26 (1).jpg
RD 15-07-26 (2).jpg
RD 15-07-26 (3).jpg

Day 85 - July 27, 2015

Became better acquainted with HPTuners software. Began modifying waste gate.

RD 15-07-27 (1).jpg

Day 86 - July 28, 2015

Configured 3 bar map sensor in HP VCM Scanner. Setup wideband O2 sensor. Worked on wastegate assembly.

Day 87 - July 29, 2015

Messed around with tune. Worked on wastegate assembly.

Day 88 - July 30, 2015

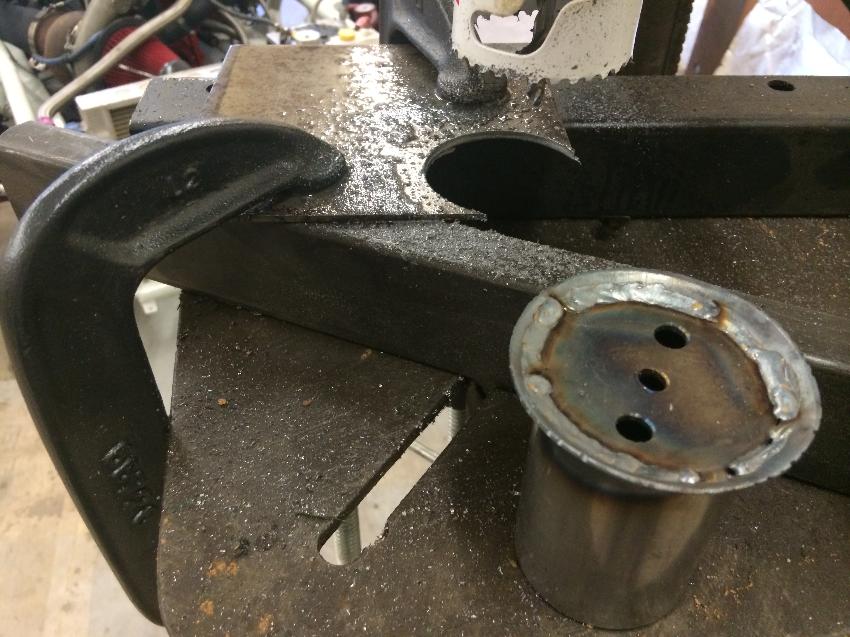

Data-logged car at idle and light revs. Worked on wastegate assembly.

RD 15-07-30 (1).jpg
RD 15-07-30 (2).jpg
RD 15-07-30 (3).jpg
RD 15-07-30 (4).jpg
RD 15-07-30 (5).jpg

Day 89 - July 31, 2015

Continued working on waste gate assembly.

RD 15-07-31 (3).jpg
RD 15-07-31 (4).jpg

Day 90 - August 1, 2015

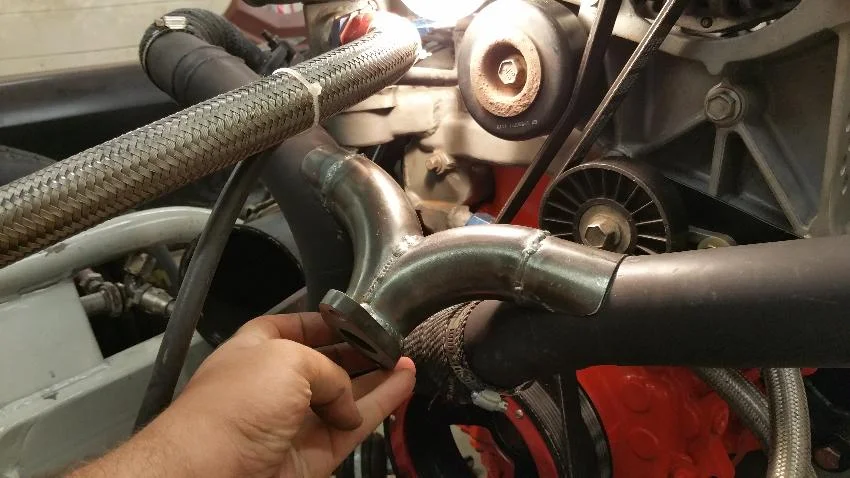

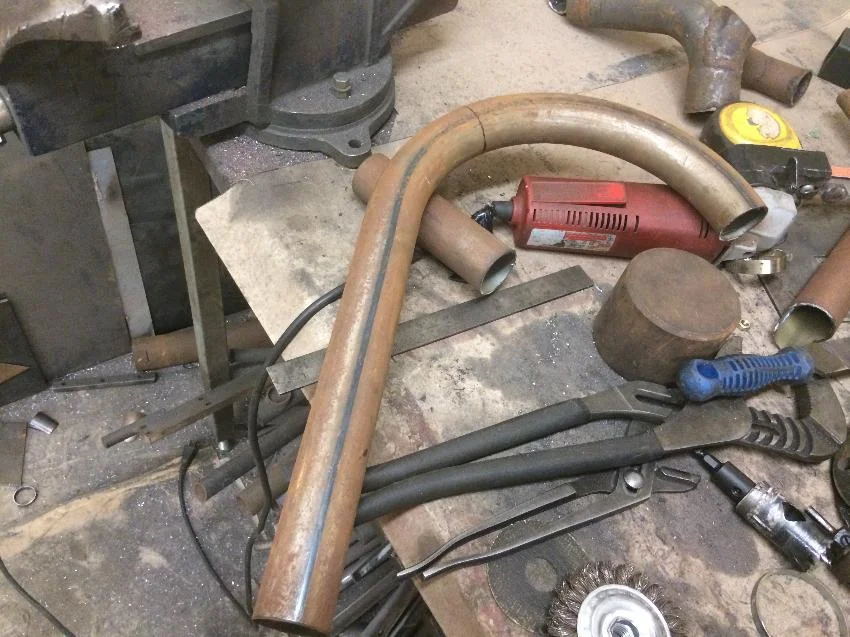

Started working on secondary waste gate assembly.

RD 15-08-01 (1).jpg
RD 15-08-01 (2).jpg
RD 15-08-01 (3).jpg
RD 15-08-01 (4).jpg
RD 15-08-01 (5).jpg
RD 15-08-01 (6).jpg
RD 15-08-01 (7).jpg
RD 15-08-01 (8).jpg
RD 15-08-01 (9).jpg
RD 15-08-01 (10).jpg
RD 15-08-01 (11).jpg
